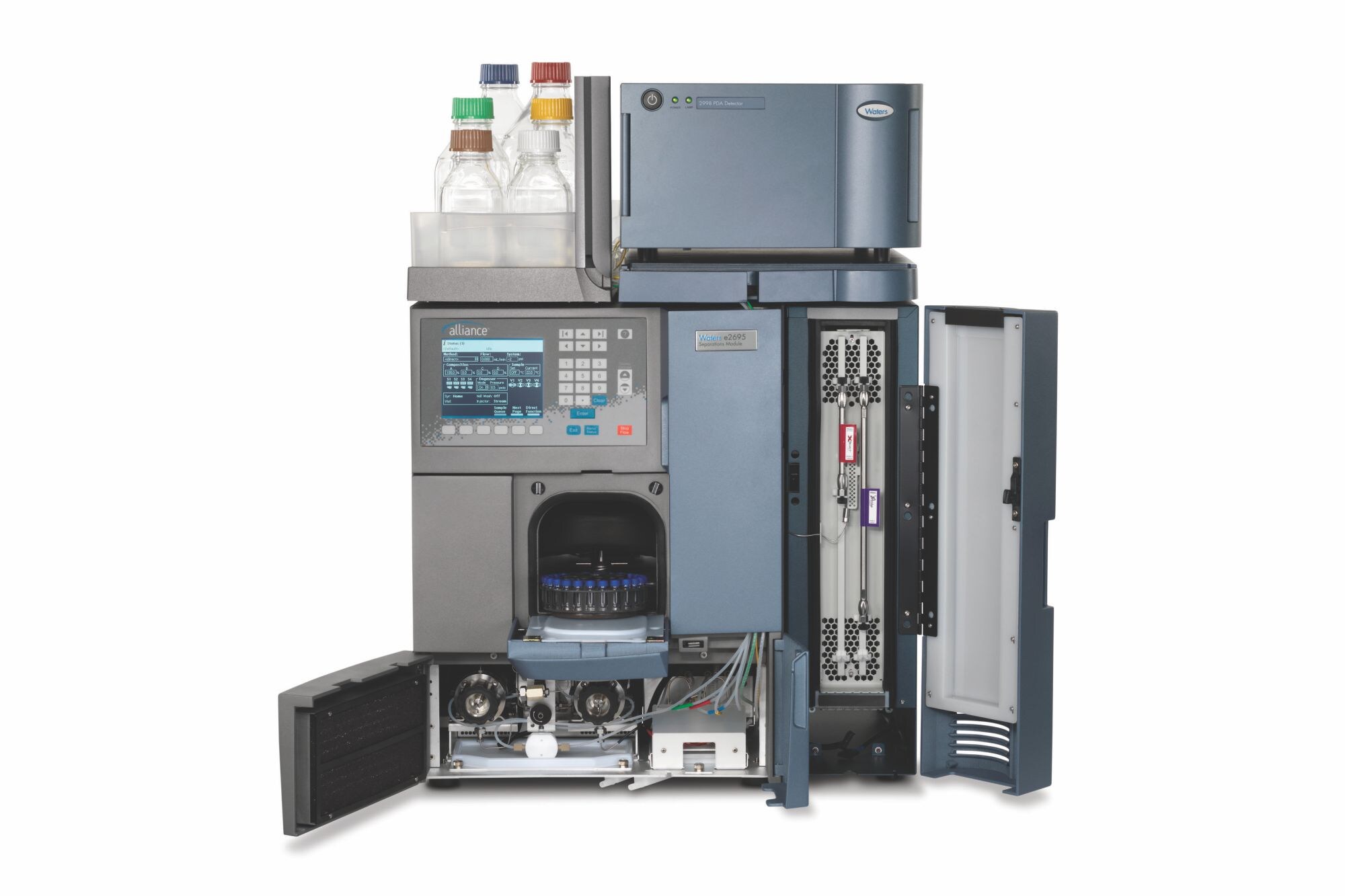

Reliable HPLC separations module with integrated autosampler, column heater, and vacuum degasser for routine pharmaceutical QC and analytical applications
Specifications
Max Pressure *
345 bar
Flow Range Min *
0.01 mL/min
Flow Range Max *
10 mL/min
Detector Types
PDA, UV, RID, FLD
Quaternary Pump
Yes
Software
Empower CDS
Solvents
1 to 4
Flow Rate Range
0.010-10 mL/min
Operating Pressure
Up to 5000 psi (345 bar)
Column Heater Range
20 to 65°C
Injection Precision
<0.5% RSD
Autosampler Capacity
120 vials (2 mL)
Sample Temperature Control
4 to 40°C
Data & Software
good interoperabilityOpen formatsProprietary software required
Data Interoperability
Good data interoperability through Empower or MassLynx with standard chromatography data formats.
Supported Formats
AIA/ANDI (CDF), ASCII, CSV, and PDF
Software Requirements
Requires Waters Empower CDS or MassLynx for MS coupling.
Notes
Workhorse HPLC system. Compatible with both Empower and MassLynx.
