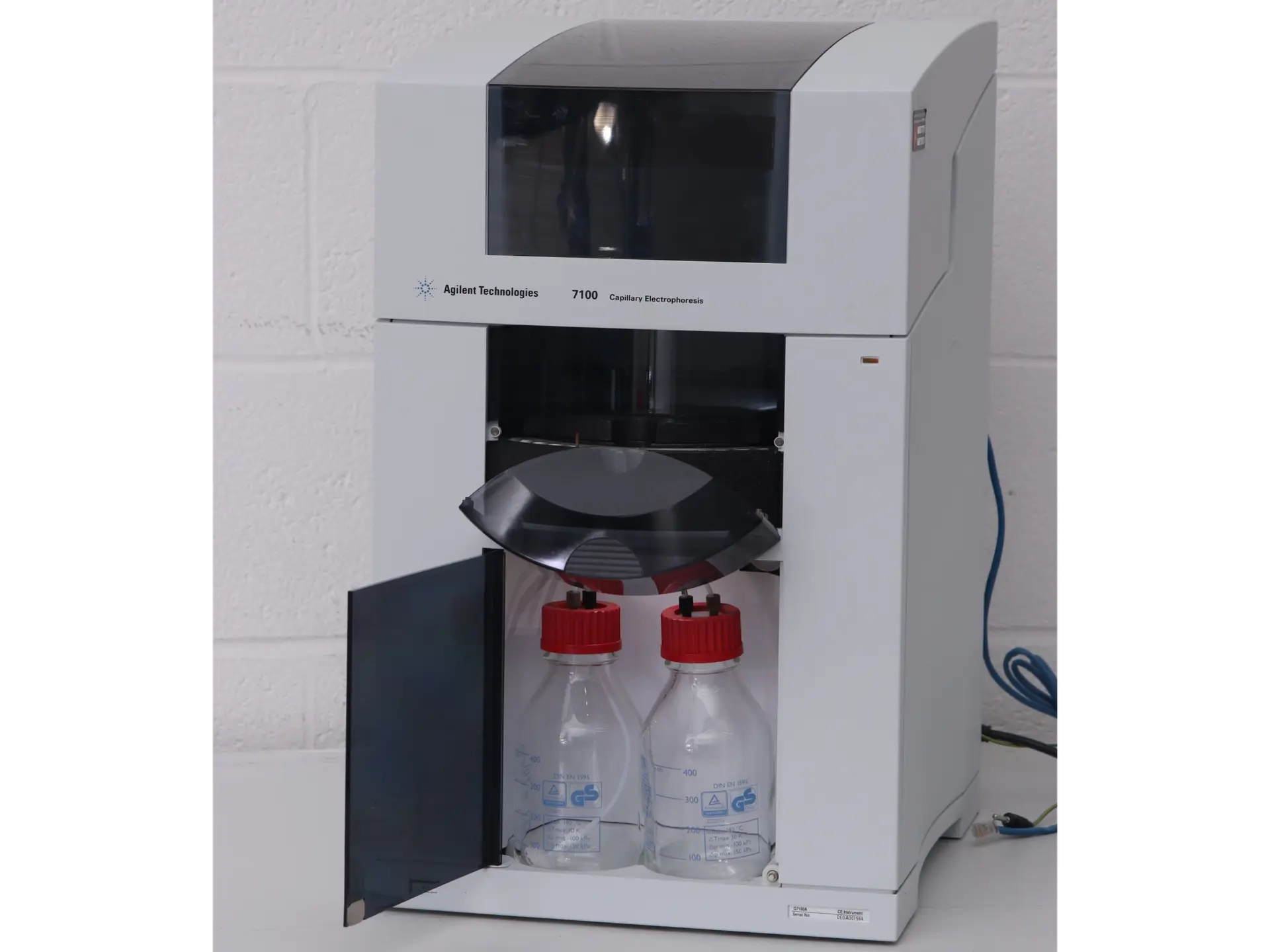

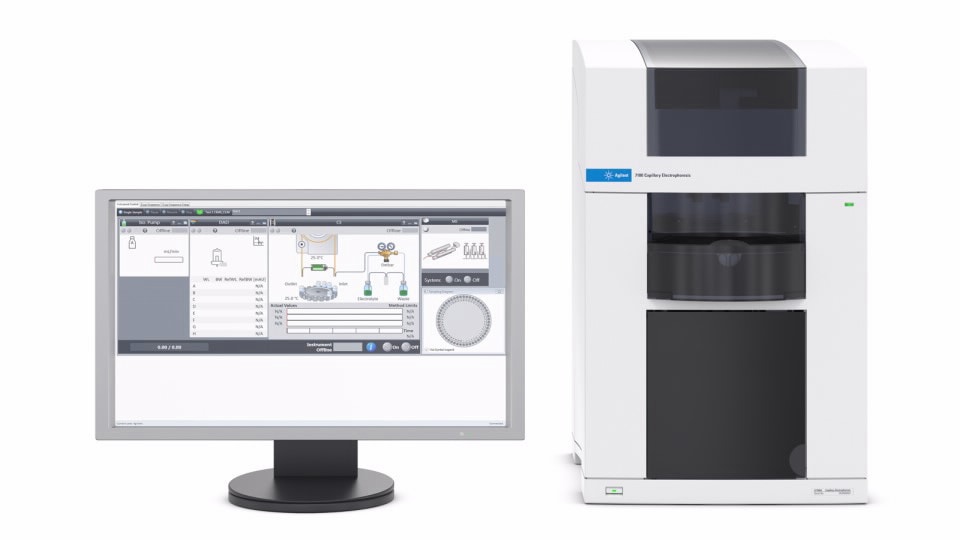

The Agilent 7100 Capillary Electrophoresis system offers fast separations with exceptional efficiency and resolution. Features optional MS coupling for CE-MS applications and comprehensive detection options.
Specifications
Voltage
Up to ±30 kV
Detection
UV-Vis DAD, LIF (Laser-induced fluorescence), MS coupling
good interoperabilityOpen formatsProprietary software required
Data Interoperability
Good data interoperability through OpenLab CDS or MassHunter software ecosystems. Supports export to open standard formats for third-party analysis tools and LIMS integration.
Supported Formats
CSV, AIA/ANDI (CDF), Allotrope Data Format (ADF), mzML/mzXML (for MS), and PDF reports
Software Requirements
Requires Agilent OpenLab CDS for chromatography instruments or MassHunter for mass spectrometry. ICP instruments use ICP Expert software. All require commercial licenses.
Notes
Strong ecosystem with multiple export options. OpenLab ECM available for enterprise data management. 21 CFR Part 11 compliance extensions available.
